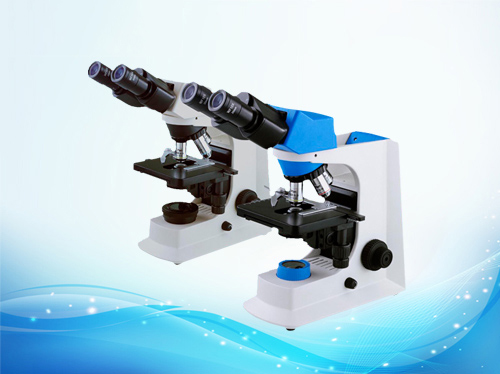

SMART Series Biological Microscope
SMART Series Biological Microscope Outfits
| Items | Specification | SMART-1 | SMART-2 | SMART-3 |
| Eyepiece | WF 10X-18 mm | ●● | ||
| WF 10X-20 mm | ●● | ●● | ||
| WF 16X-13 mm | ○○ | ○○ | ○○ | |
| Reticule Eyepiece WF 10X-18 mm (0.1mm) | ○ | ○ | ○ | |
| Reticule Eyepiece WF 10X-20 mm (0.1mm) | ○ | ○ | ○ | |
|
Achromatic Objective |
4X | ● | ||
| 10X | ● | |||
| 40X(S) | ● | |||
| 100X/1.25 (Oil) (S) | ● | |||
| 20X | ○ | |||
| 60X (S) | ○ | |||
| Plan Objective | 4X | ● | ||
| 10X | ● | |||
| 40X/0.65 (S) | ● | |||
| 100X/1.25 (Oil) (S) | ● | |||
| 20X | ○ | |||
| 60X (S) | ○ | |||
|
Infinity E-Plan Objectives |
4X | ● | ||
| 10X | ● | |||
| 40X (S) | ● | |||
| 100X (Oil) (S) | ● | |||
| Plan 20X | ○ | |||
| Plan 60X (S) | ○ | |||
| Seidentopf Binocular Head |
Inclined 30°,Rotatable 360°, Interpupilary Distance 50-75mm |
● | ● | ● |
|
Seidentopf Trinocular Head |
Inclined 30°,Rotatable 360°, Interpupilary Distance 50-75mm, Light Distribution: 20:80 |
○ | ○ | ○ |
| Nosepiece | Quadplex | ● | ● | ● |
| Mechanical Stage |
Stage Size: 145X140mm Travel: 76mmX52mm, Scale: 0.1mm Coaxial Coarse and Fine Focusing Knobs Travel Range: 26mm, Scale: 2um Two Slide Holder |
● | ● | ● |
| Condenser | Abbe N.A. 1.25(Iris Diaphragm) | ● | ● | ● |
| Illumination | 6V/20W Halogen Lamp | ● | ● |
