Microscope - กล้องจุลทรรศน์, กล้องขยาย
>>
5

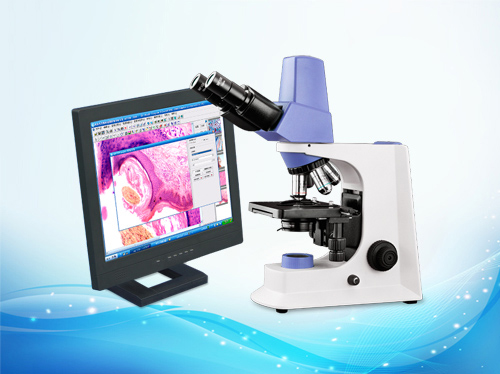

Digital Microscope รุ่น SMART-e320&500
SMART-e Digital Microscope Outfits
| Items | Specification | SMART-e320 | SMART-e500 |
| Eyepiece | WF 10X-20mm | ●● | ●● |
| Infinity EPlan Objective | 4X | ● | ● |
| 10X | ● | ● | |
| 40X/0.65 (S) | ● | ● | |
| 100X/1.25 (Oil) (S) | ● | ● | |
| Seidentopf Binocular Head | Inclined 30°,Rotatable 360°,Interpupilary Distance: 50-75mm | ● | ● |
| Nosepiece | Quadplex | ● | ● |
| Mechanical Stage |
Stage Size: 145X140mm Travel: 76mm×52mm, Scale: 0.1mm,Two Slide Holder |
● | ● |
| Condenser | Abbe N.A. 1.25(Iris Diaphragm) | ● | ● |
| Illumination | 6V/20W Halogen Lamp | ● | ● |
| 6V/30W Halogen Lamp | ○ | ○ | |
| LED Illumination Systems（W/O Rechargeable） | ○ | ○ | |
| Filter | Blue(Built In) | ● | ● |
| Image Systems | 3.2MP Pixel | 5 MP Pixel |
Note: "●"In Table Is Standard outfits, "○" Is Optional Accessories.
Packing Size: 570mm×275mm×450mm Gross Weight: 8 kgs Net Weight: 7 kgs
