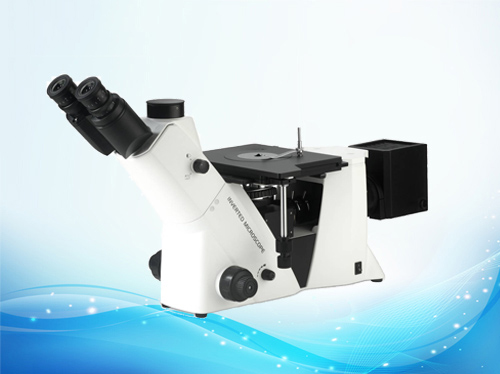

Inverted Metallurgical Microscope รุ่น MDS400
MDS400 Inverted Metallurgical Microscope Outfits
| Item | Specification | MDS400 | MDS400D | |
| Eyepiece | WF10×／22mm（adjustable） | ● | ● | |
| WF10×／22mm（adjustable，reticule 0.1mm） | ● | ● | ||
|
Metallurgical LWD Infinity Plan Objectives |
LPL 5×／0.13 | W.D=24.23mm | ● | ○ |
| LPL 10×／0.25 | W.D.= 18.48mm | ● | ○ | |
| LPL 20×／0.40 | W.D.= 8.35mm | ● | ○ | |
| LPL 50×／0.70(S) | W.D.= 1.95mm | ● | ○ | |
| LPL 40×／0.65 | W.D.= 3.90mm | ○ | ○ | |
| LPL 80×／0.80(S) | W.D.= 0.85mm | ○ | ○ | |
| LPL 100×／0.90(S) | W.D.= 1.00mm | ○ | ○ | |
|
Metallurgical LWD Infinity Plan Objectives for Bright & Dark Field |
M PLAN 5×／0.13 BD | W.D=24.23mm | ● | |
| M PLAN 10×／0.25 BD | W.D.= 18.48mm | ● | ||
| M PLAN 20×／0.40 BD | W.D.= 8.35mm | ● | ||
| M PLAN 50×／0.70 BD | W.D.= 1.95mm | ● | ||
| M PLAN 80×／0.80 BD | W.D.= 0.85mm | ○ | ||
| Seidentopf Trinocular Head |
Inclined 30°, interpupilary distance: 48-76mm Light distribution (both):100: 0（100% for eyepiece） 80:20（80% for trinocular head,and 20% for eyepiece） |
● | ● | |
| Nosepiece | Quintuple | ● | ||
| Quadplex （specially for bright /dark field objectives） | ● | |||
| Mechanical Stage | Three layers，Stage size: 210 mm×180mm, Moving range:50×50mm , Scale : 0.1mm | ● | ● | |
| Coaxial Coarse and Fine Focusing unit |
Coarse stroke: 10mm, Fine stroke per rotation: 0.2mm, fine division 2 μm. |
● | ● | |
| Polarizing Unit | Polarizer /Analyzer | ● | ● | |
| Illumination | 12V/50W Halogen（Input voltage：100V～240V） | ● | ● | |
| Filter | Blue | ● | ● | |
| Green | ○ | ○ | ||
| Amber | ○ | ○ | ||
| Grey | ○ | ○ | ||
| C-mount | 1×C-Mount | ○ | ○ | |
| 0.5× C-Mount (Focus adjustable) | ○ | ○ | ||
| Adaptor for Digital Photograph | Use for CANON／NIKON／OLYMPUS etc. | ○ | ○ | |
