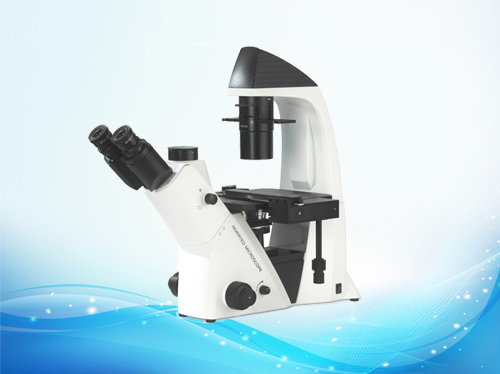

Inverted Microscope รุ่น BDS400
BDS400 Inverted Biological Microscope Outfits
| Item | Specification | Outfits | |
| Eyepiece | WF10×／22mm（23mm is optional） | ●● | |
| LWD Infinity Plan Objectives | LPL 4×／0.11 | W.D.=12.1mm | ○ |
| LPLAN 10×／0.25 | W.D.=8.3mm | ● | |
| LPLAN 20×／0.40 | W.D.=7.2mm | ● | |
| LPLAN 40×／0.60 | W.D.=3.4mm | ● | |
| LWD Infinity Plan Phase Contrast Objectives | LPL Ph P 10×／0.25 | W.D.=8.3mm | ○ |
| LPL Ph P 20×／0.40 | W.D.=7.2mm | ● | |
| LPL Ph P 40×／0.60 | W.D.=3.4mm | ○ | |
| Annular Spot | 10× | ○ | |
| 20×/ 40× ( for both 20× and 40× ) | ● | ||
|
Seidentopf Trinocular Head |
Inclined 45°, interpupilary distance: 48-76mm Light distribution (both): 100: 0（100% for eyepiece） 80:20 (80% for trinocular head, and 20% for eyepiece) |
● | |
| Nosepiece | Quintuple | ● | |
| Mechanical Stage |
Stage size: X×Y: 210×241mm， Round slide size：Φ110mm, Attached mechanical stage (available for 96 holes plate, moving range X×Y：128×80mm.) |
● | |
| Culture Dish Holder | 65mm | ○ | |
| 54mm | ● | ||
| 35mm | ○ | ||
| Condenser |
Long working distance, Quickly detachable , N.A.0.3, Working distance: 72mm (with condenser),195mm(without condenser). |
● | |
| Koehler Illumination | 6V/30W （input voltage：100V～240V） | ● | |
| Filter | Blue | ● | |
| Green | ● | ||
| Amber | ○ | ||
| Grey | ○ | ||
| C-mount | 1× C-Mount (better for digital photograph) | ○ | |
| 0.5× C-Mount ( focus adjustable, better for digital camera) | ○ | ||
| Adaptor for Digital Photograph | Use for CANON／NIKON／OLYMPUS etc. | ○ | |
| Epi Fluorescence Illumination | Epi fluorescence unit , field diaphragm，center adjustable. | ○ | |
| 100W mercury lamp (OSRAM) | ○ | ||
| B, G, V, UV fluorescence filters can be chosen. | ○ | ||
| Digital mercury lamp power box (input voltage:100V～240V) | ○ | ||
